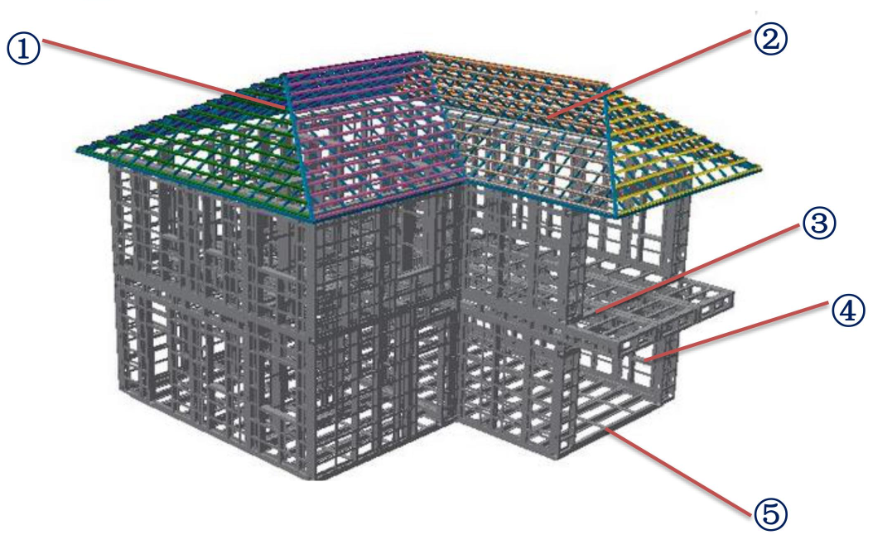

1、SYSTEM CONSTRUCTION
(1).ROOFING STRUCTURE;(2).ROOF TRUSS;(3).FLOOR STRUCTURE;(4).WALL FRAME;(5).FOUNDATION STRUCTURE

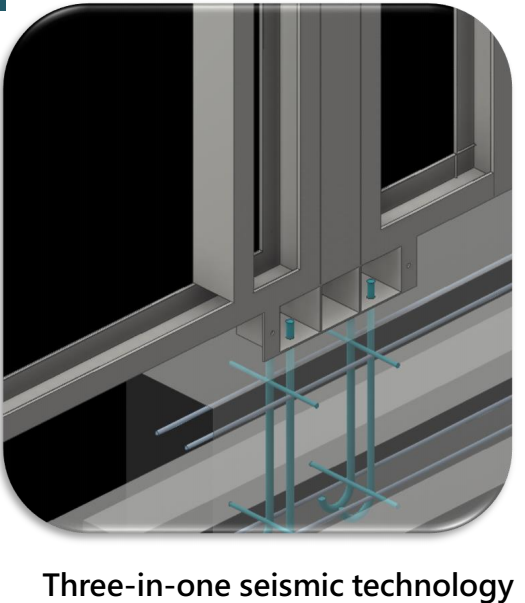

2、SYSTEM CONSTRUCTION/THE ADVANTAGE OF WALL STRUCTURE

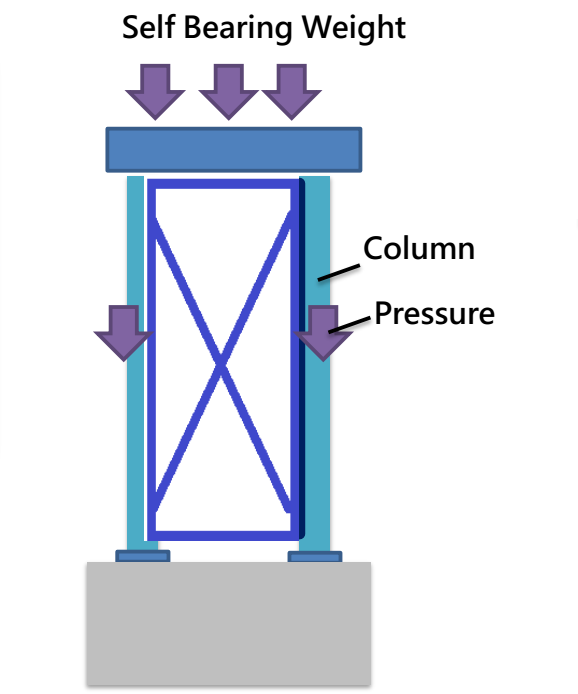

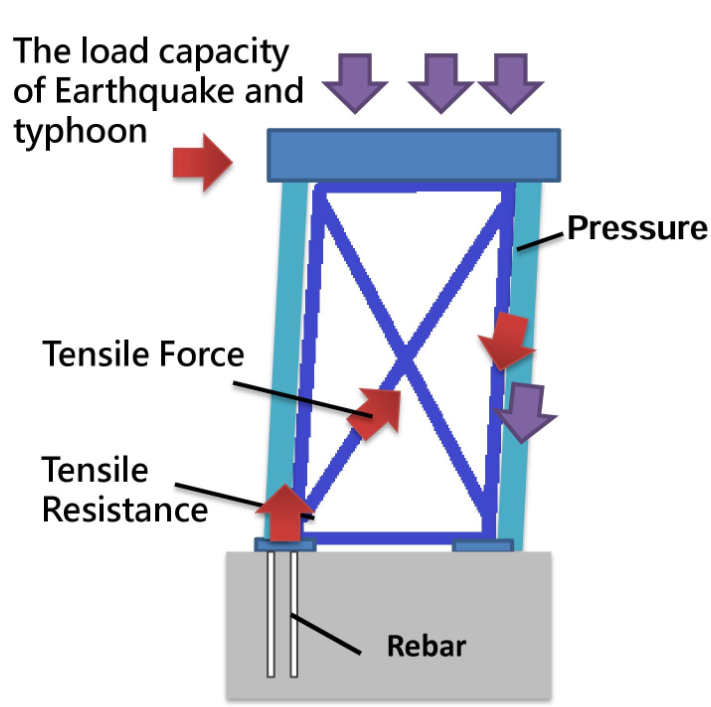

Longitudinal Load;Lateral load

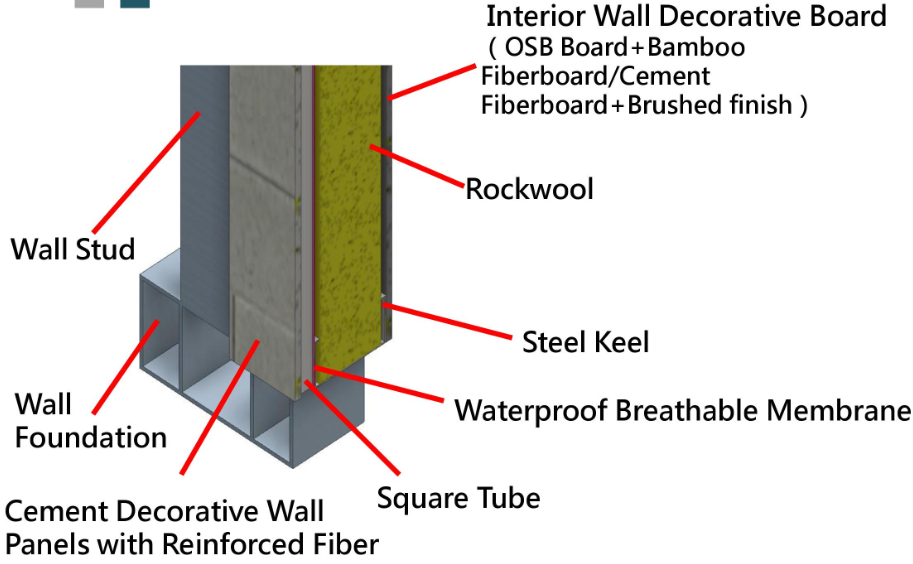

3、SYSTEM CONSTRUCTION/WALL STRUCTURE
1、External Wall Board

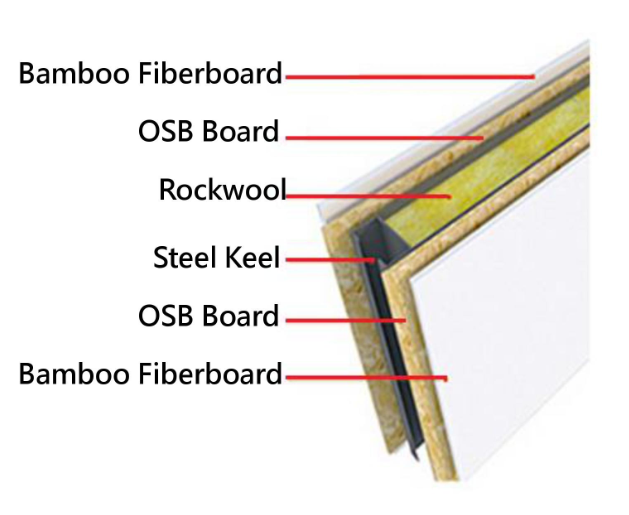

2、Interior Wall Board
4、SYSTEM CONSTRUCTION/WALL STRUCTURE

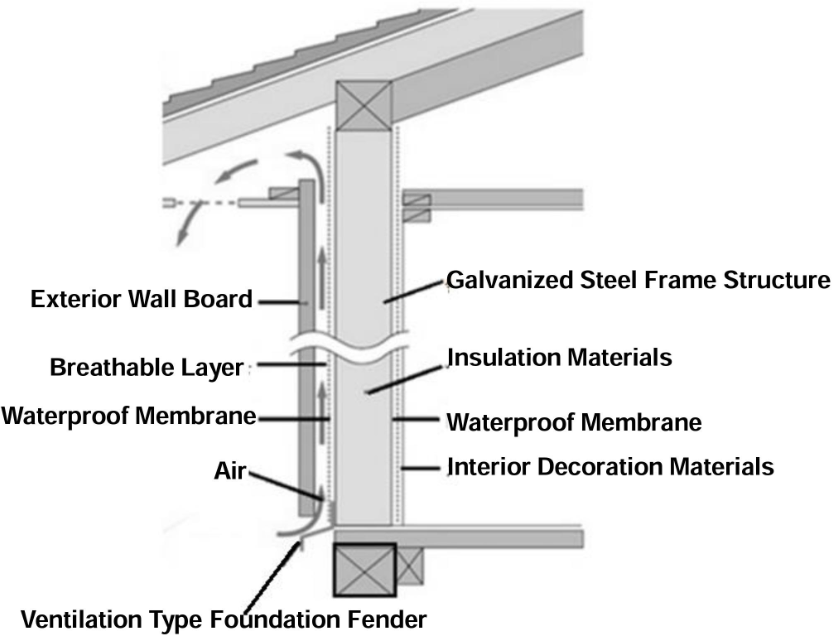

Design Characteristics/Ventilation Structure
(1)、The external wall board is waterproof and the rainwater drains away rapidly. This prevents rainwater from reaching the internal frame.
(2)、If there is a difference between the outside air temperature and the temperature inside the building, this can produce condensation/water vapour inside the frame area. This is prevented from reaching the inside of the inner wall by the waterproof membrane. The condensation/water vapour is able to escape from the frame area through the breathable layer; it is then carried to the outside of the outer layer by the convection air current between the frame area and the external wall board.

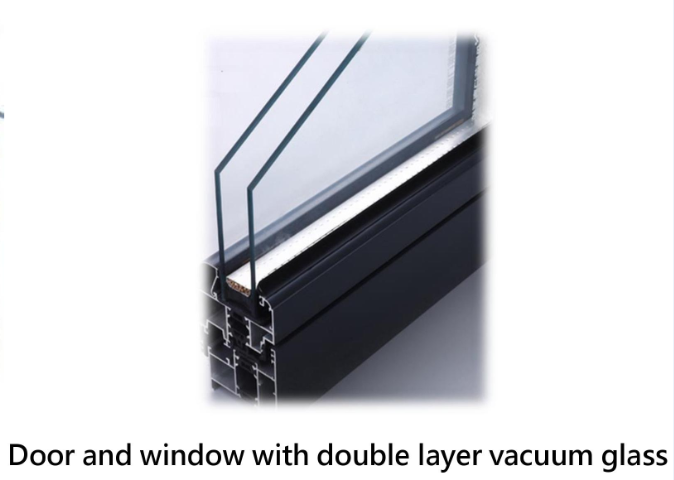

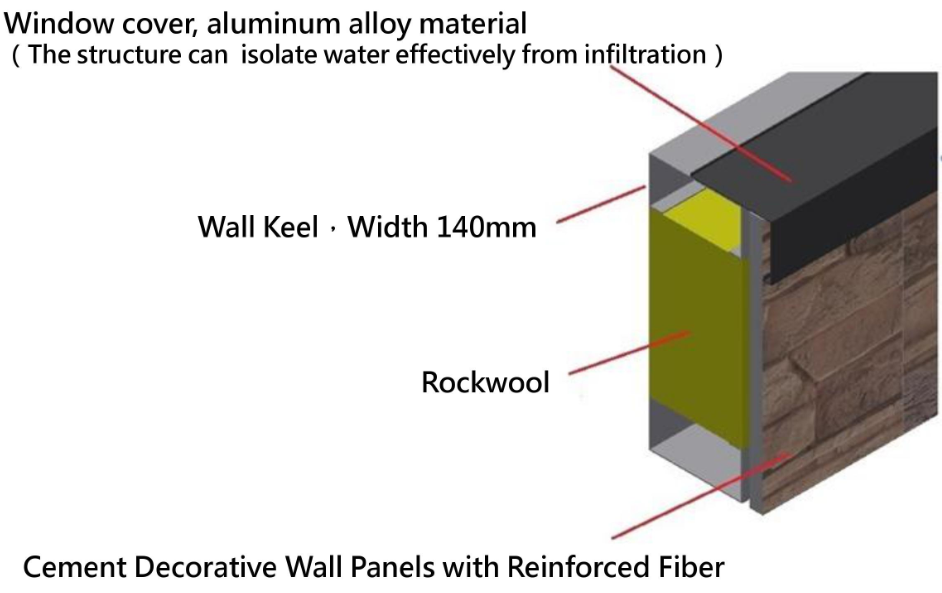

5、SYSTEM CONSTRUCTION/WINDOW STRUCTURE

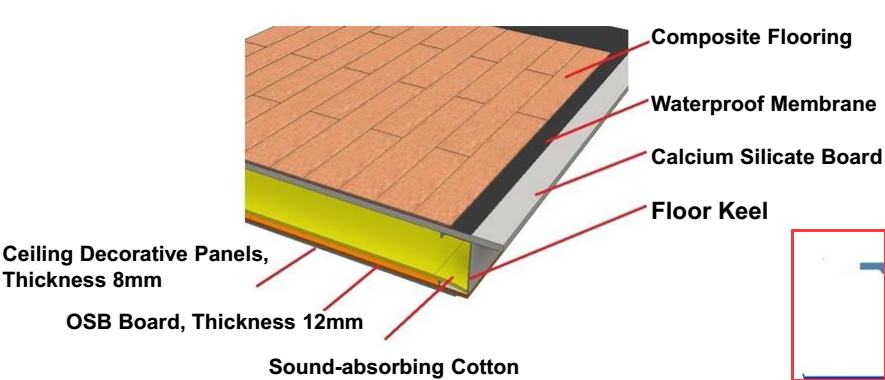

6、SYSTEM CONSTRUCTION/GROUND STRUCTURE

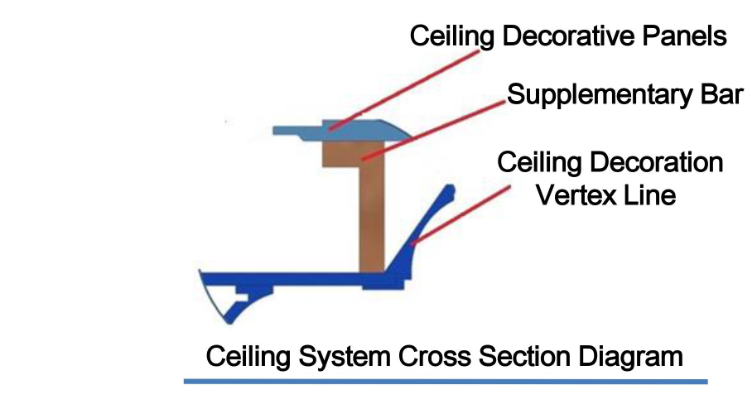

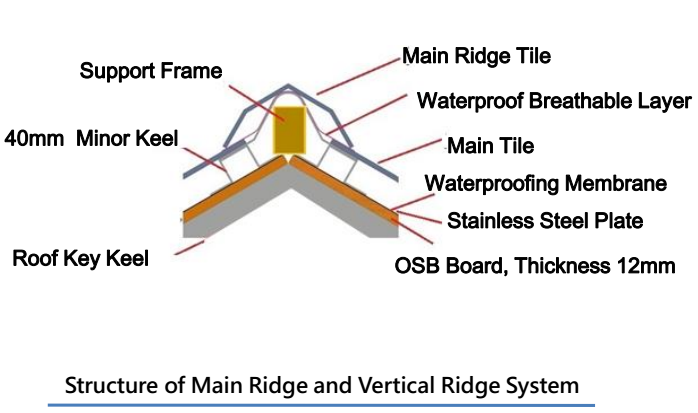

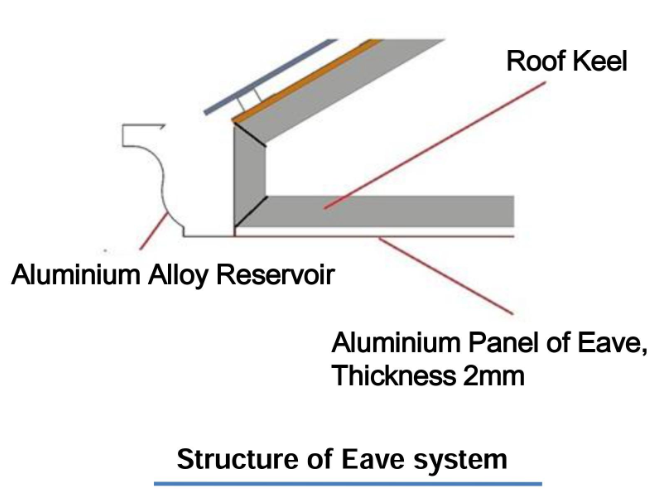

7、SYSTEM CONSTRUCTION/ROOFING STRUCTURE
